Laboratory Equipment

Suitable for Laboratories, Chemicals, Pharmaceuticals, Dyes, Glass Plants etc. Particularly useful for Heating inflam- mable liquids. Electric heating net is hand knitted from glass yarn and there is no joint to maintain the strength of the yarn and stands high temperature up to 350°C.

The body of the mantle is duly Stoving Painted. All heating mantles are lagged with special grade mineral wool. To work on 220/230 Volts A.C. Fitted with Energy Regulator or with PID Micro Processor controller dual display with safety alarm.

Maximum Temp.12000C working temp.11500C.
Light weight with ceramic fiber wool insulation. The outer casing is made of double walled thick P.C.R.C. sheet, painted with attractive stove enamel.

Heating Elements are made of KANTHAL "A-1" wire in coil From placed in the ribs of the tiles, backed by cerwool insulation, which avoids loss of energy. A viewing cap is also provided on the door. Temperature controlled by PID Micro Processor Controller Dual Display with safety Alarm an accuracy of ± 3°C or better. To work on 220/230Volts or 400/ 440 Volts A.C. 3 phase supply.

This heating plate is very useful for continuous heating upto 350°C.Cast iron plate machined to a smooth & leveled surface is fitted on a robust mild steel double body painted with an attractive stoving enamel . Top of rectangular cast iron plate has insulated beaded elements inside. Provided with Energy Regulator or Thermostat (upto 300°C ) or PID Micro Processor controller dual display with safety alarm. To work on 230 Volts AC, 50 Hz single phase supply.

This heating plate is very useful to continuous heating upto 500°C. Cast iron plate machined to a smooth & leveled surface is fitted on a robust mild steel perforated body painted with attractive stove enamel. The top of the plate is of 20.5 cm Dia. The rating of the plate is 1.5 Kw. Fitted with Energy Regulator or Digital Controller Cum Indicator PID Micro Processor controller dual display with safety alarm. To work on 230 Volts AC, 50Hz single phase supply.

In this system there is one path of circulating Hot Air in between the inner chamber and insulation. Forced Air Moved by the motorised blower is called PERFECT SYSTEM . It results minimum temperature variation at any point in working space.

Temperature controlled by PID Micro Processor Controllor Dual Display with Safety Alarm from 50°C to 250°C with a Sensitivity of ± 1°C or better in Bare Oven. Working chamber is made of Stainless steel and outside made of mild steel painted with good stoving enamel with adjustable wire mesh Nichol plated trays. To work on 220/230 Volts A.C. supply.

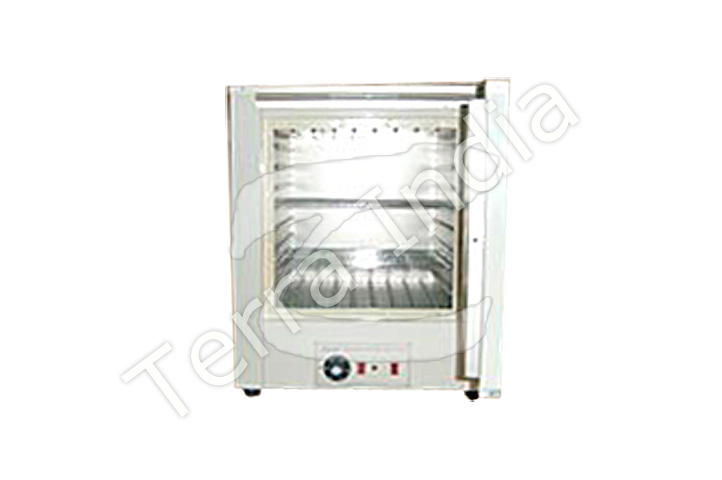

Temperature Thermostatically controlled by hydraulic thermostat from 50°C to 250°C with a sensitivity of ± 1°C in Bare Oven. Beaded heating elements are placed in ribs at the bottom and sides. Built in L-shape thermometer. Double walled, inside made of Aluminium or Stainless steel & outside mild steel sheet painted with attractive stove enamel with adjustable wire mesh nichol plated trays, on/off Rocker switch with Indicator & Thermostat Indicator, to work on 220/230 Volts A.C.

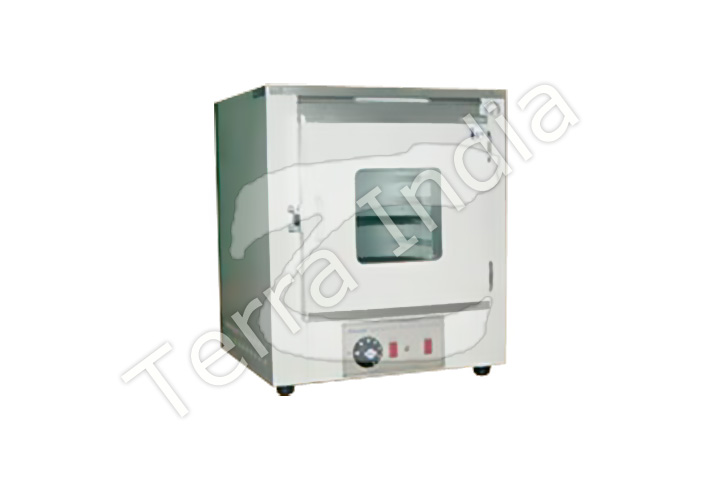

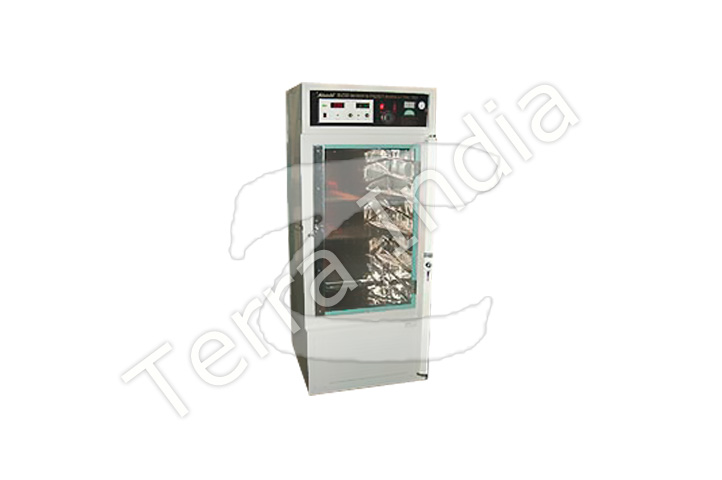

Temperature Thermostatically controlled by hydraulic thermostat 5°C above ambient to 70°C with a sensitivity of ± 0.5°C in Bare Incubator. Beaded heating elements are placed in ribs at the bottom and sides. Double walled, inside Aluminium or Stainless steel & outside mild steel sheet painted with attractive stove enamel. Door has double glass viewing, built in horizontal L-shape glass thermometer with wire mesh Nichol plated adjustable trays, Rocker Switch with Indicator & Thermostat Indicator, to work on 220/230 Volts A.C.

In this system there is one path of circulating Hot Air in between the inner chamber and insulation. Forced Air Moved by the motorized blower is called PERFECT SYSTEM . It results minimum temperature variation at any point in working space. Temperature controlled by PID Micro Processor controller dual display with safety alarm from 5°C above ambient to 70°C with a sensitivity of ± 0.1°C in Bare Incubator. Working chamber is made of Stainless steel 304 grade and outside made of mild steel painted with good stoving enamel with adjustable wire mesh nichol plated trays. To work on 220/230 Volts A.C. supply.

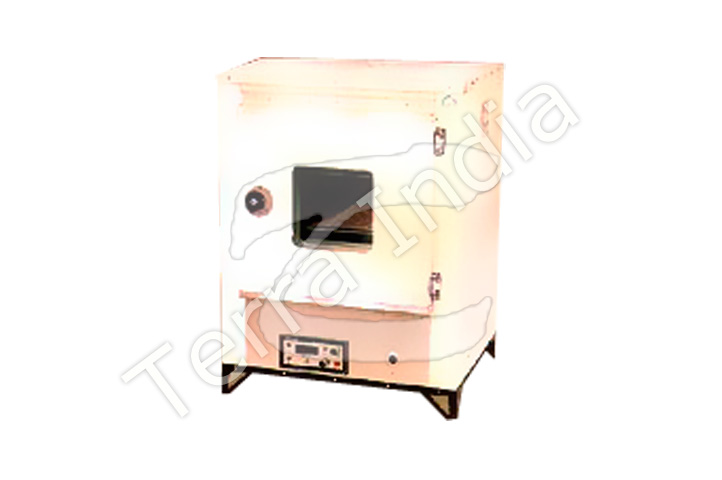

Maximum Temp. 950°C working temp.900°C.
Light weight with ceramic fiber wool insulation. The outer casing is made of double walled thick P.C.R.C. sheet painted with attractive stove enamel. Heating elements are made of KANTHAL wire backed by cerawool insulation.

A viewing cap is also provided on the door. Temperature control unit consists of Energy regulator & Digital Indicator with silver thermal fuse or with PID Micro Processor controller dual display with safety alarm. to work on 220/230 volts AC with an accuracy of ± 3°C or Better.

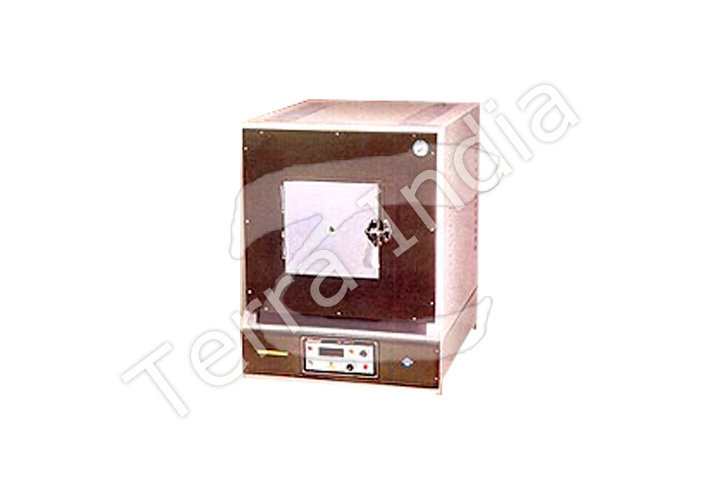

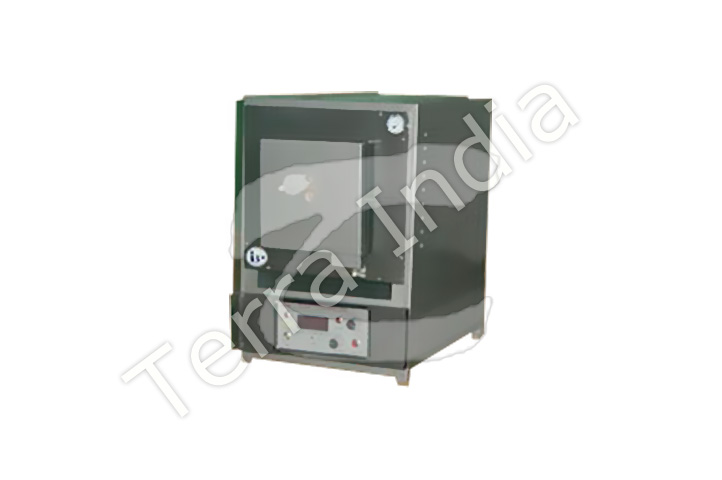

Maximum Temp.1200°C working temp.1150°C.
Light weight with ceramic fiber wool insulation. The outer casing is made of double walled thick P.C.R.C. sheet, painted with attractive stove enamel.

Heating Elements are made of KANTHAL "A-1" wire in coil From placed in the ribs of the tiles, backed by cerwool insulation, which avoids loss of energy. A viewing cap is also provided on the door. Temperature controlled by PID Micro Processor Controller Dual Display with safety Alarm an accuracy of ± 3°C or better. To work on 220/230Volts or 400/ 440 Volts A.C. 3 phase supply.

Thermostatic Controlled: Without Rack and Thermometer

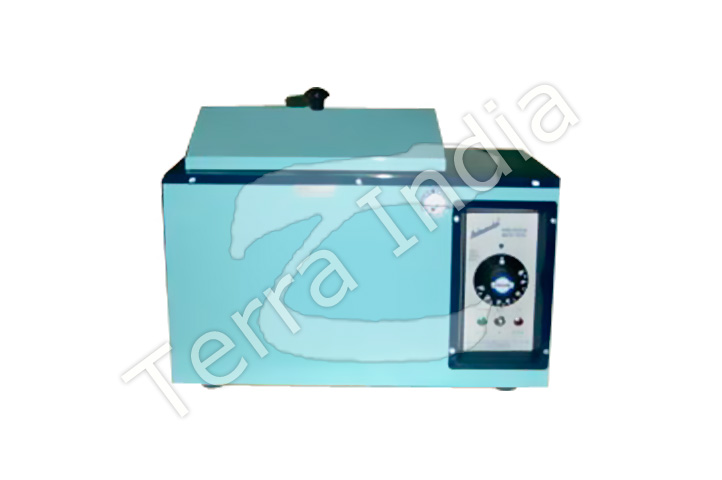

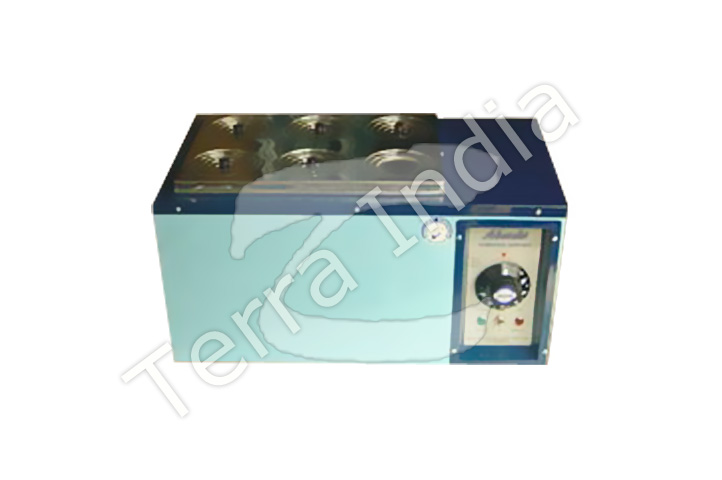

Double walled, inside made of stain less steel 304 grade and out side mild sheet painted with attractive stove enamel. Temperature is controlled by a hydraulic thermostat from 5°C above ambient to 100°C with a sensitivity of ± 0.5°C fitted with ISI mark Tublar Element. Bath consists of 2 pilot lamps & on/off switch, to work on 220/230 Volts A.C. Fitted with Thermostat or with PID Micro Processor controller dual display with safety alarm.

Without Thermometer
Double walled, inside made of stain less steel 304 grade and out side mild steel painted with attractive stove enamel. Temperature is controlled by a hydraulic thermostat from 5°C above ambient to 100°C with sensitivity of ± 0.5°C fitted with ISI mark Tublar Element. Bath consists of 2 pilot lamps & on/off switch, to work on 220/230 Volts A.C.

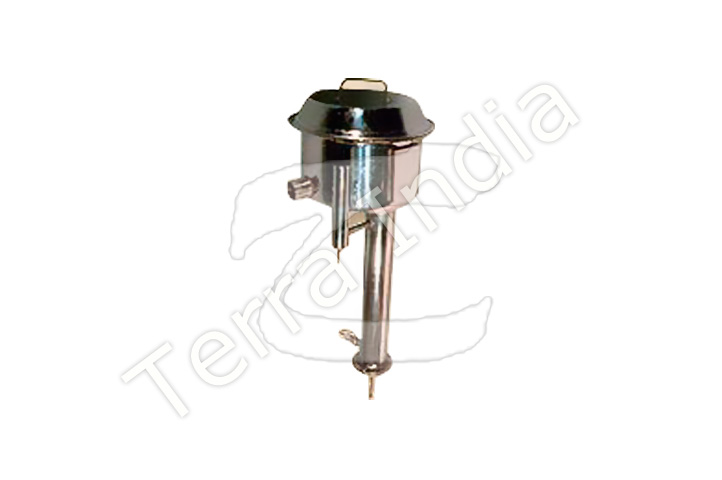

This unit is recommended for making pyrogen free water of a very High degree of purity. This still is fitted with ISI mark Kettle Element with ejection device. The complete unit is made of stainless steel except tap, to work on 220/230 Volts A.C.

Low Temperature Incubator
Perfect System Double walled, inner chamber made of Stainless Steel sheet 304 grade &outer mild steel stoving painted. Specially designed wire mesh shelves made of SS 304 grade. Gap between the walls is filled with puf insulation. Two Air Circulation Fans are provided for uniformity of temp in working space. Refrigeration system with CFC. Free compressor & R 134 a eco-friendly refrigerant is used, Temperature 5°C to 50°C with controlling accuracy of ± 0.5°C is controlled with Dual Display PID Micro Processor controller-cum-Indicator. Built in automatic voltage stabilizer & inside full view Acrylic Door is also provided. To work on 220/230 volts AC. Tracibility calibration certificate of control is also provided.

Suitable for all laboratory application requiring constant temperature to high degree of accuracy ± 0.2°C or better. Temperature is controlled by PID microprocessor Digital Controller cum Indicator with dual Display from 5°C above ambient to 95°C. Double walled, inside made of stainless steel 304 grade and outside mild steel sheet painted with attractive stove enamel fitted with ISI mark Tublar Elements. A Glass window is fixed on the front side. Supplied complete with stirring arrangement and Goval cover. To work on 220/230 Volts A.C.

Only Heating
Temperature range ambient +5°C to 60°C ±.2°C & humidity range from ambient to 98% ± 2%. Double walled outer body mild steel stoving painted & inner chamber of stainless steel 304 grade.

Temperature & Humidity is controlled by PID Micro Processor controller dual display with safety alarm in %age direct Inside glass door & stainless steel water tank is provided. Humidity is created by means of steam. To work on 230 volts AC.

With Cooling
Specially Designed Double walled with internal chamber stainless steel 304 grade & out side mild steel sheet stoving painted & inbetween puf insulation is filled. Chamber providing controlled Temperature from 10°C to 60°C ±.2°C & Humidity from 40% to 98% ± 2%. Temperature & Humidity is Controlled by PID Micro Processor controller dual display with safety alarm in %age direct. Inside glass door & stainless steel water tank is provided.

SS Tubing Heater U shape take care of Temperature above ambient & CFC free Compressor with R134 a refrigerant maintains temperature below ambient. Humidity is created by means of steam. Built in Automatic voltage stabilizer to work on 230 volts AC.

Without Oil
Specially Designed Double walled with internal chamber stainless steel 304 grade & out side mild steel sheet stoving painted & inbetween puf insulation is filled. Chamber providing controlled Temperature from 10°C to 60°C ±.2°C & Humidity from 40% to 98% ± 2%. Temperature & Humidity is Controlled by PID Micro Processor controller dual display with safety alarm in %age direct. Inside glass door & stainless steel water tank is provided.

SS Tubing Heater U shape take care of Temperature above ambient & CFC free Compressor with R134 a refrigerant maintains temperature below ambient. Humidity is created by means of steam. Built in Automatic voltage stabilizer to work on 230 volts AC.
